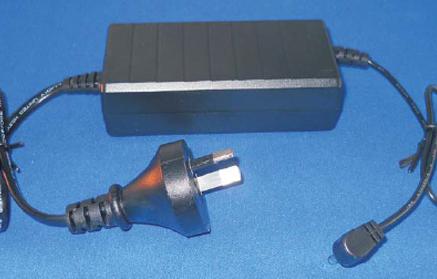

Item : PA1060-C4B
Model : PA1060-C4B
| Over-Voltage Protection Over-Current Protection |
Low Ripple/Noise MTBF Above 50000 HRS At 25℃ |
| Limit current Protection(Optional) |
LVD authentication Limited Power Sources(LPS) |
| Short-circuit Protection 100%Hi-pot & ATE(Chroma)Tested |
CEC IV and V Efficiency Regulations Compliance |
| 100%Burn-in under High Ambient Temperature(40℃) |
Cispr 22 CLASS B,VCCI CLASS B, FCC Part15 CLASS B, Compliance |
| Model No | PA1040-1C4 | PA1040-2C4 | PA1040-3C4 | PA1040-4C4 | PA1040-5C4 | |
| Part No | PA1040-050C4B~ PA1040-089C4B |
PA1040-050C4B~ PA1040-089C4B |
PA1040-050C4B~ PA1040-089C4B |
PA1040-050C4B~ PA1040-089C4B |
PA1040-050C4B~ PA1040-089C4B |
|
| Item | ||||||
| Output Voltage | 5.0~8.9V | 9~14.9V | 15~24V | 24.1~36V | 36.1~48V | |
| Output Current(Max .) | 9.0A | 4.44A | 2.66A | 1.66A | 1.11A | |
| Output Power(Max.) | 45W | 40W | 40W | 40W | 40W | |
| Input Votage | AC90~264V | |||||
| Input Frequency | 47~63Hz | |||||
| Input Current | 1.5A Maximum | |||||
| Inrush Current | 60A Maximum | |||||
| Line Regulation | 1% Maximum |
|||||
| Rippl e&Noise | 1% Maximum | |||||
| Load Regulation | 5% Maximum | |||||
| Efficiency | ≧84% | |||||
| Operating Temperature | 0~40℃ | |||||
| Storage Temperature | -20~85℃ | |||||
| Over-Voltage Protection | Auto Recovery | |||||
| Short-circuit Protection | Auto Recovery | |||||
| Safety Standard | CB,MEPS,PSE,DOIR,Kvalitet | |||||
| EMC(EMI/EMS) | C-Tick,LVD,LPS | |||||
