/ LED Driver / PL1150 Series/150W
Detail Info
;this.blur();)

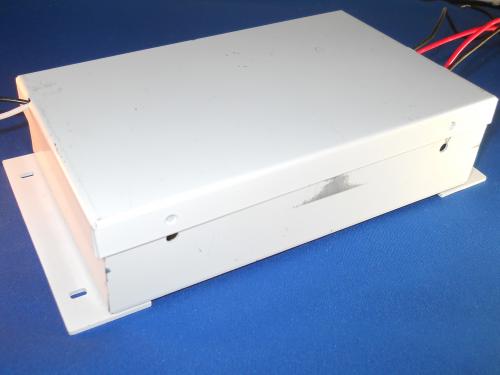

Item : PL1150
Model : PL1150
| High Power Factor & High Efficiency | 100%Burn-in under High Ambient Temperature(40℃) |
| Constant current &Constant voltage |
Over- current Protection Over- Voltage Protection |
| Temperature compensation circuit Over temperature protection |
Low Ripple/Noise MTBF Above 60000 HRS At 25℃ |
| Model No | PL1150 | |
| Item | ||
| Output Voltage | 12V -48V | |
| Output Current(Max .) | 3 .125~ 12.5A | |
| Output Powe r(Max .) | 150W | |
| Input Votage | AC :90~264V | |
| Input Current (Max ) | 2.5A | |
| Ripple&Noise | 2% maximum | |
| Efficiency | ≧ 87% |
|
| Operating Temperature | 0~ 40℃ | |
| Storage Temperature | -20~85℃ | |
| Over-Voltage Protection | Auto Recovery | |
| Short-circuit Protection | Auto Recovery | |
