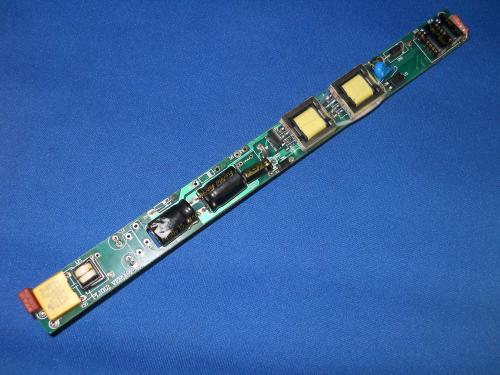

Item : PL1012
Model : PL1012
| Over current Protection | Short-Circuit Portection |
| Constant current &Constant voltage |
100%Burn-in under High Ambient Temperature(40℃) |
| Low Ripple/Noise MTBF Above 50000 HRS At 25℃ |
| Model No | PL1012 | |
| Item | ||
| Output Voltage | 12-24V , 24-48V D C | |
| Output Current(Max .) | 100mA ~800 mA | |
| Output Powe r(Max .) | 12W | |
| Input Votage | AC :90-277V | |
| Input Current (Max ) | 0.4A maximum | |
| Ripple&Noise | 2% maximum | |
| Efficiency | ≧ 78% & ≧ 0.9(O ptiona l) |
|
| Operating Temperature | -0~40℃ | |
| Storage Temperature | -20~85℃ | |
| Over-Voltage Protection | Auto Recovery | |
| Short-circuit Protection | Auto Recovery | |
