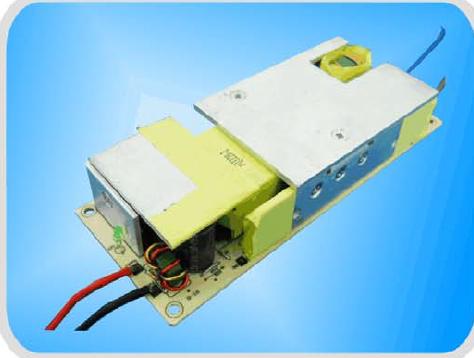

Item : PO1120
Model : PO1120
| Over- Voltage Protection Over- current Protection |
Short-Circuit Portection |
| Limit current Protection |
100%Burn-in under High Ambient Temperature(40℃) |
| Low Ripple/Noise MTBF Above 50000 HRS At 25℃ |
| Model No | PO1120 | |
| Item | ||
| Output Voltage | 12-48V | |
| Output Current(Max .) | 1.5~10A | |
| Output Powe r(Max .) | 120W | |
| Input Votage | AC 90~264V | |
| Input Current (Max ) | 2A | |
| Ripple&Noise | 1% | |
| Efficiency | ≧87% |
|
| Operating Temperature | -0~40℃ | |
| Storage Temperature | -20~85℃ | |
| Over-Voltage Protection | Auto Recovery | |
| Short-circuit Protection | Auto Recovery | |
