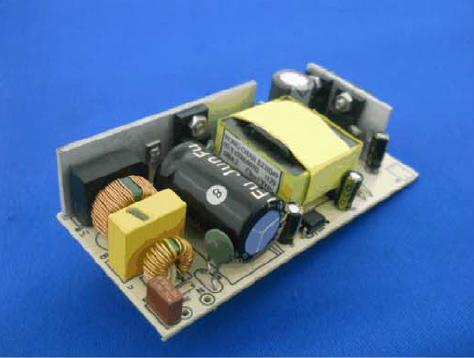

Item : PO1030
Model : PO1030
| Over- Voltage Protection Over- current Protection |
Short-Circuit Portection |
| Limit current Protection |
100%Burn-in under High Ambient Temperature(40℃) |
| Low Ripple/Noise MTBF Above 50000 HRS At 25℃ |
| Model No | PO1030 | |
| Item | ||
| Output Voltage | 30V | |
| Output Current(Max .) | 1A | |
| Output Powe r(Max .) | 30W | |
| Input Votage | A C :90~264V | |
| Input Current (Max ) | 1A | |
| Ripple&Noise | ---- | |
| Efficiency | ---- |
|
| Operating Temperature | 0~40℃ | |
| Storage Temperature | -20~85℃ | |
| Over-Voltage Protection | Auto Recovery | |
| Short-circuit Protection | Auto Recovery | |
