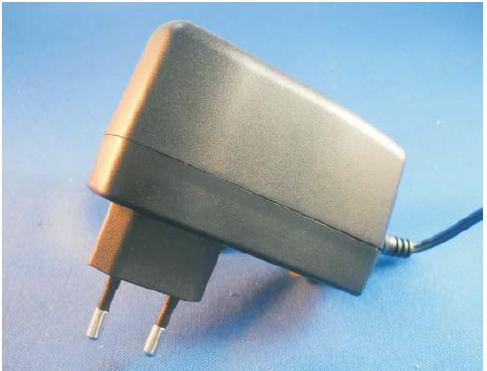

Item : PA1045-HEB
Model : PA1045-HEB
| Over-Voltage Protection Over-Current Protection |
Low Ripple/Noise MTBF Above 50000 HRS At 25℃ |
| Limit current Protection(Optional) |
LVD authentication Limited Power Sources(LPS) |
| Short-circuit Protection 100%Hi-pot & ATE(Chroma)Tested |
CEC IV and V Efficiency Regulations Compliance |
| 100%Burn-in under High Ambient Temperature(40℃) |
Cispr 22 CLASS B,VCCI CLASS B, FCC Part15 CLASS B, Compliance |
| Model No | PA1045-XHEB | PA1045-XHEB | PA1045-XHEB | PA1045-XHEB | |
| Part No | PA1045-120HEB~ PA1045-189HEB |
PA1045-190HEB~ PA1045-240HEB |
PA1045-241HEB~ PA1045-360HEB |
PA1045-361HEB~ PA1045-480HEB |
|
| Item | |||||
| Output Voltage | 12V~18.9V | 19V~24V | 24.1V~36V | 36V~48V | |
| Output Current(Max .) | 3.33A | 2.1A | 1.66A | 1.0A | |
| Output Power(Max.) | 40W | 40W | 40W | 40W | |
| Input Votage | AC90~264V | ||||
| Input Frequency | 47~63Hz | ||||
| Input Current | 1.0A~1.5A Maximum | ||||
| Inrush Current | 80A Maximum | ||||
| Line Regulation | 1% Maximum |
||||
| Rippl e&Noise | 1% Maximum | ||||
| Load Regulation | 5% Maximum | ||||
| Efficiency | ≧86% | ||||
| Operating Temperature | 0~40℃ | ||||
| Storage Temperature | -20~85℃ | ||||
| Over-Voltage Protection | Auto Recovery | ||||
| Short-circuit Protection | Auto Recovery | ||||
| Safety Standard | CB,GS | ||||
| EMC(EMI/EMS) | CE, C-Tick ,FCC, VCCI | ||||
